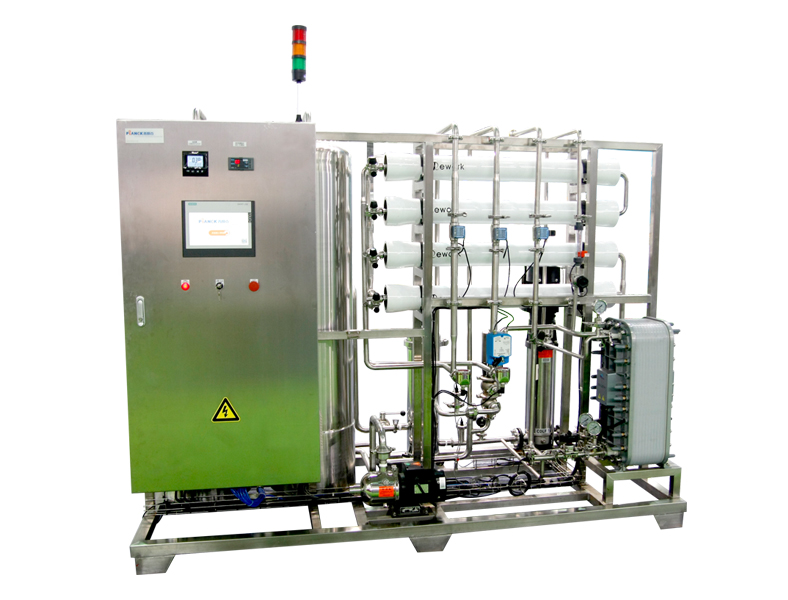

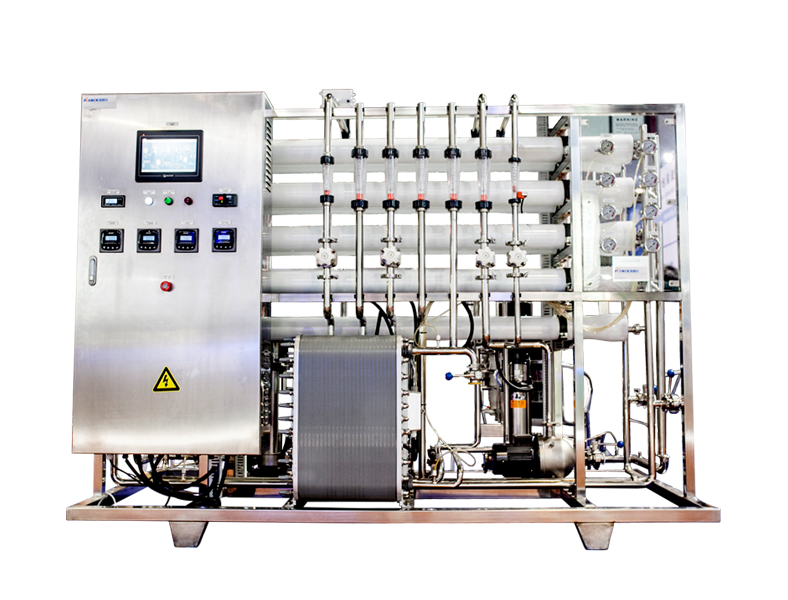

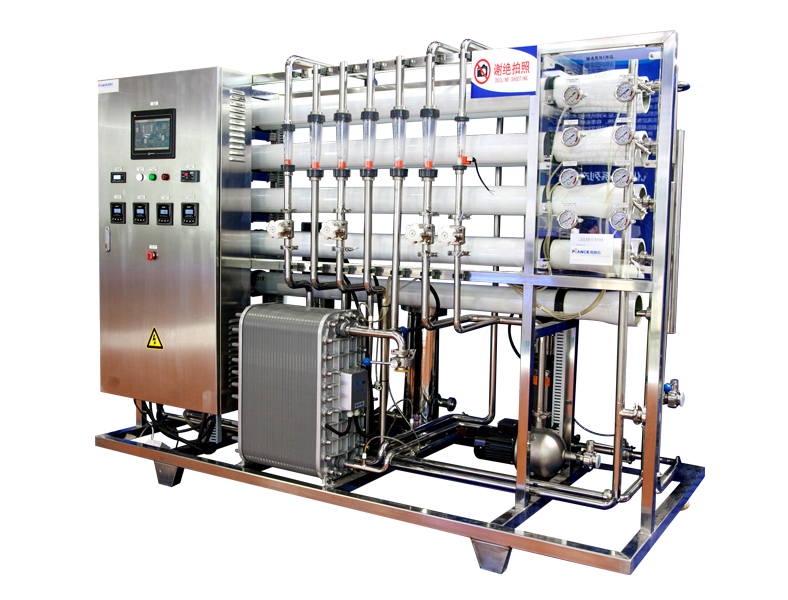

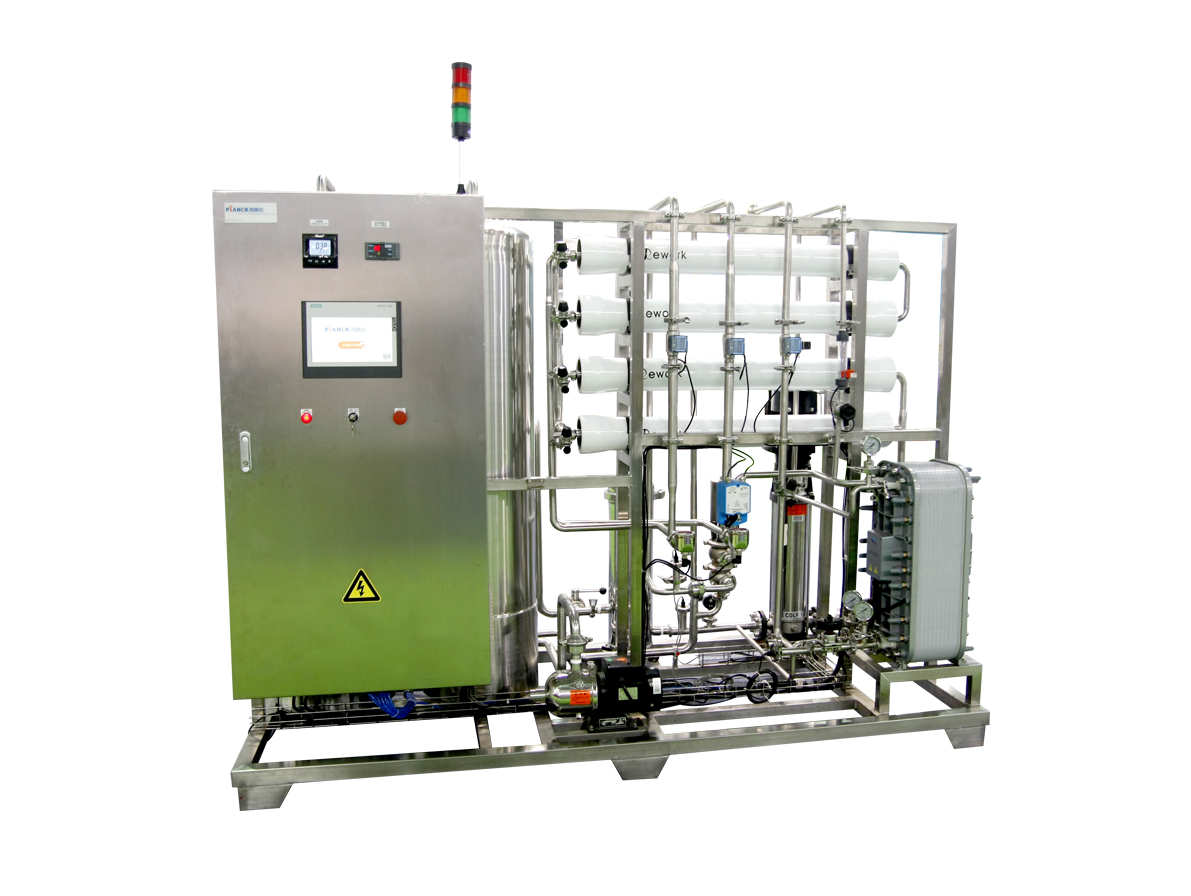

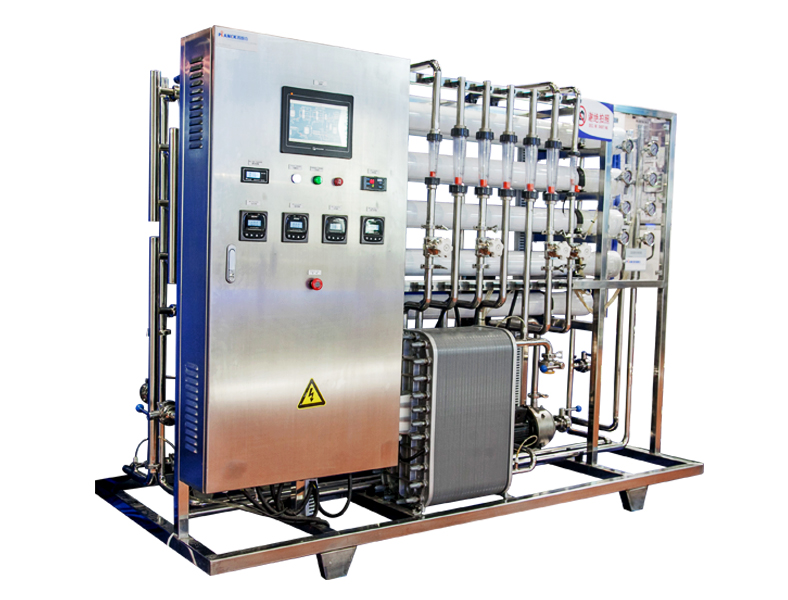

Water purified system
Water purified system
Water consumption record, supplies consumption alert
Modular design is an effective way to meet the diverse needs of customers, to make fast response, and to reduce product cost. Planck’s water treatment system can meet the water used demand during processing as well as can be for cleaning and disinfecting. The system adopts a modular design, combining the programs of filtration, sterilization, and clean liquid transportation into one modular device. It can be used for individual purpose for different scenarios. The system works very flexible and convenient. In a closed loop application, the system can realize material enclosed running to avoid two-way pollution. That’s in accordance with GMP requirements.
Advantages of control system
• fast switching between processing and cleaning
• support on line sterilization, the whole system is sanitary grade without any dead ends in water pipeline.
• Ensure that the entire system pipelines is completely discharged
• Supply to customers with a variety of materials pipeline together with the appropriate valves and meters
• The entire pipeline system is set up in accordance with the GMP standard. Verifiable documents from quality control, construction control, and pressure testing.
• Sanitary standard diaphragm pump
• Construction in accordance with SOP procedures standard
• Professional welding
System characteristics:
• Fully automatic operation mode, effectively prevents the production loss by the wrong operation.
• Some parts are SS316L material
• CIP with PLC controlled
• Records for the parameters and steps of the cleaning process
• meet the GMP requirements
• compact and isolated.

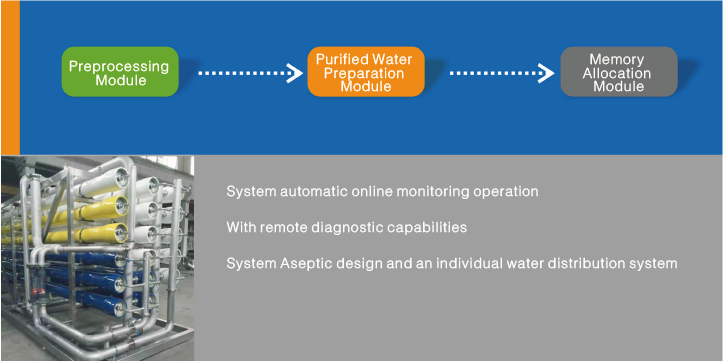

Purified Water Distribution Module
To supply the purified stored water to the processing point, and to ensure that the pressure, flow and temperature meet the needs of the production. Distribution system monitors and controls on line for the water flow, pressure, temperature, TOC, conductivity, and ozone. Also it will have periodic sterilization to effectively control microorganism in the water.
