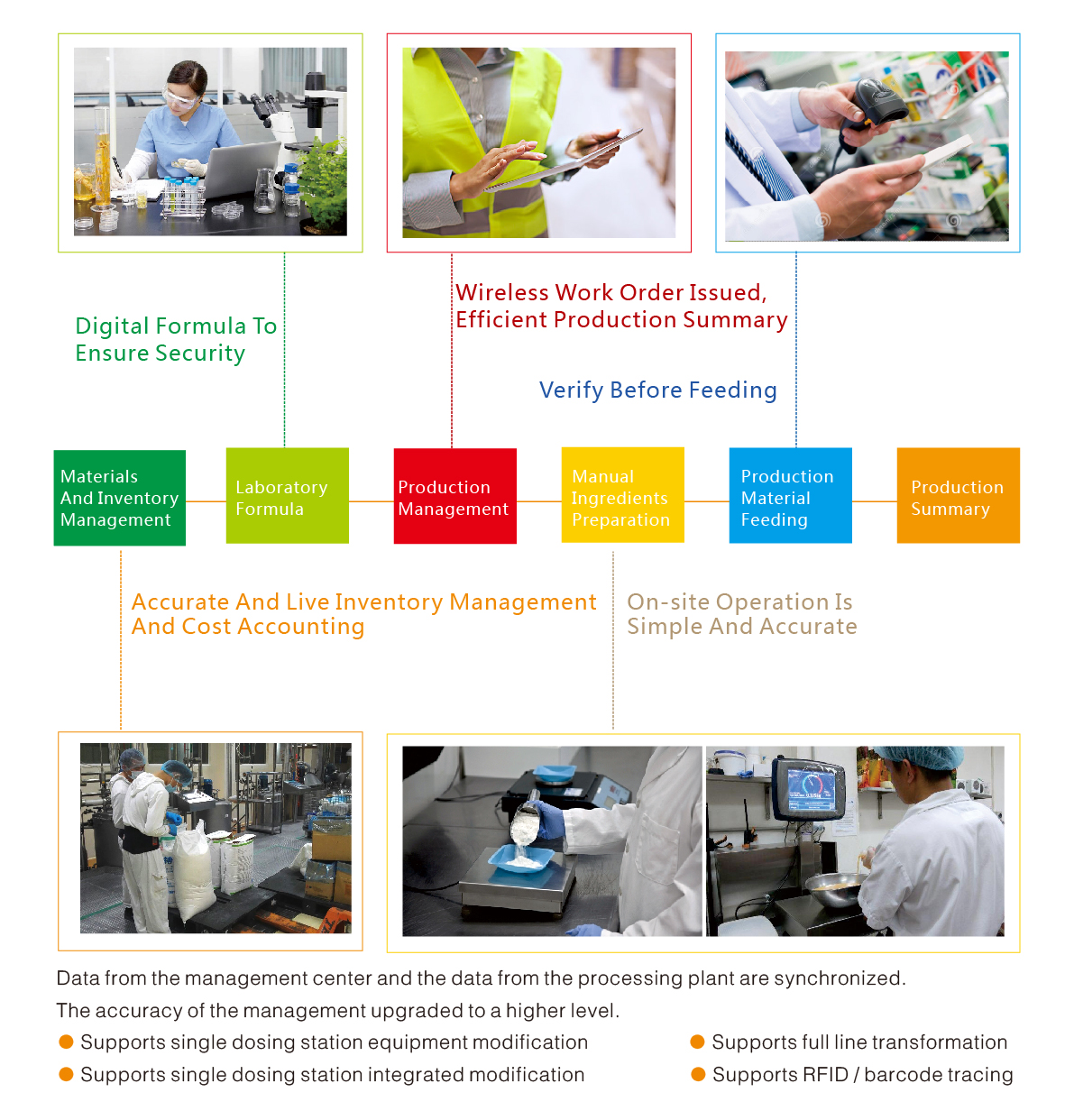

This system can achieve material and inventory management, formula editing, ingredients assignment, precise batching control and tracking, feeding match review, data query and report management. It even can combine with the process technology control to achieve the entire batch production chain information management.

Error-prevented formula control system

This system can achieve material and inventory management, formula editing, ingredients assignment, precise batching control and tracking, feeding match review, data query and report management. It even can combine with the process technology control to achieve the entire batch production chain information management.

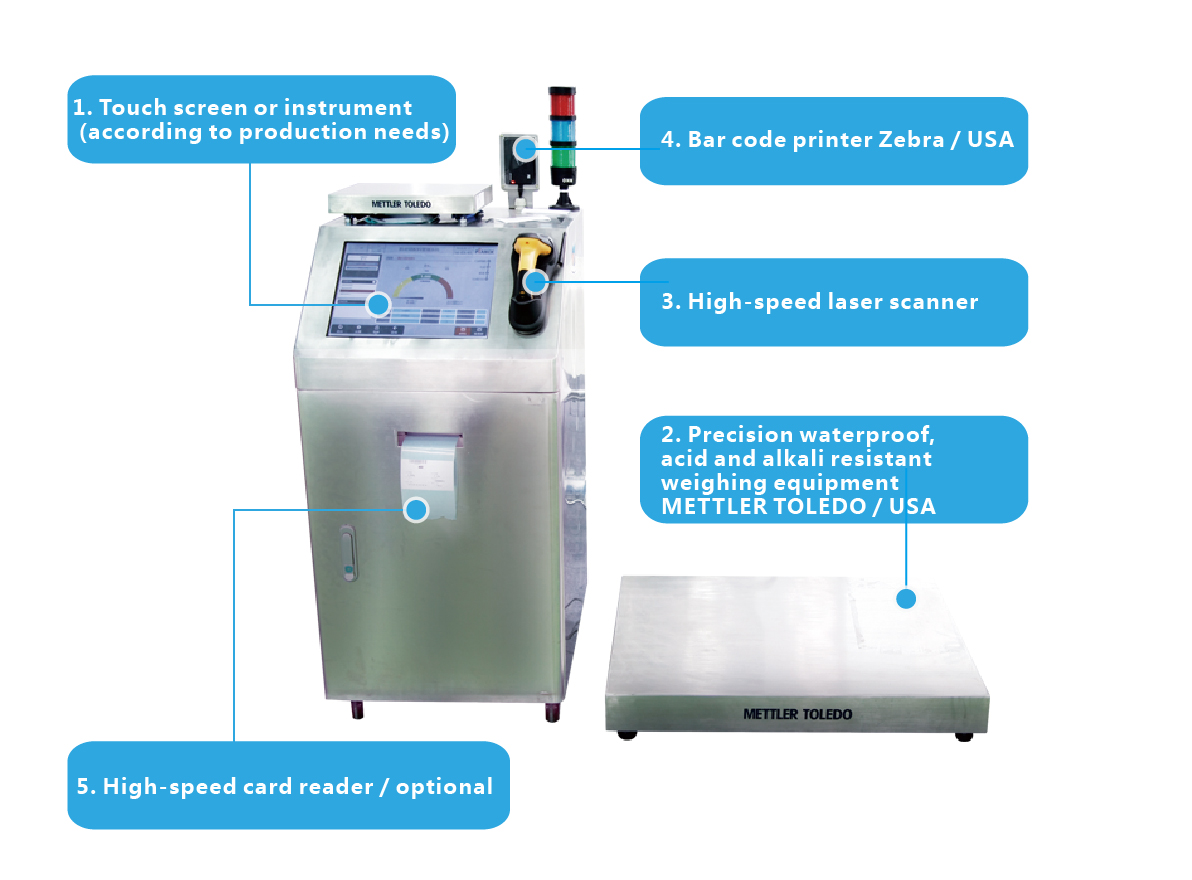

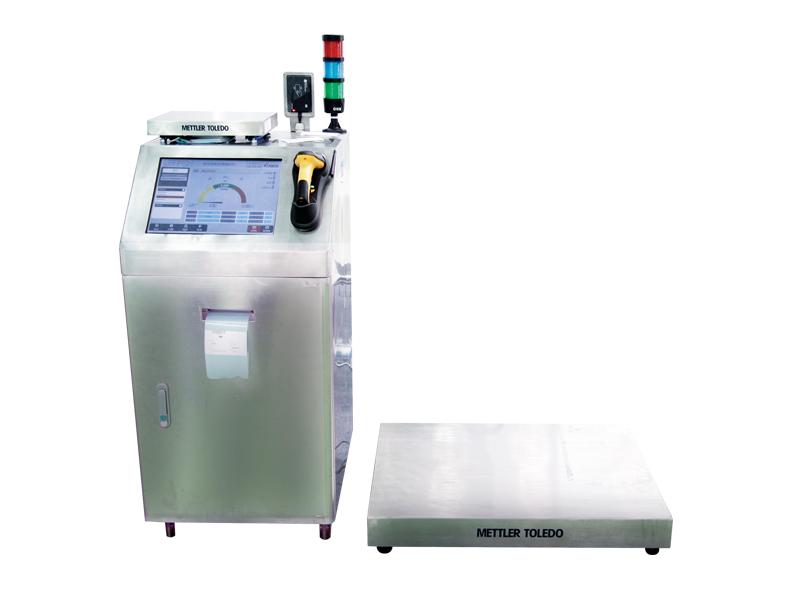

Error prevented operation station

Hardware Advantages

✓ Industrial hardware integration system, strong on-site operation ability;
✓ Outstanding 3 prevention performance, stable operation;
✓15 "touch-screen operation, fast and convenient;
✓ easy maintenance
✓ Casters for flexible mobile services.

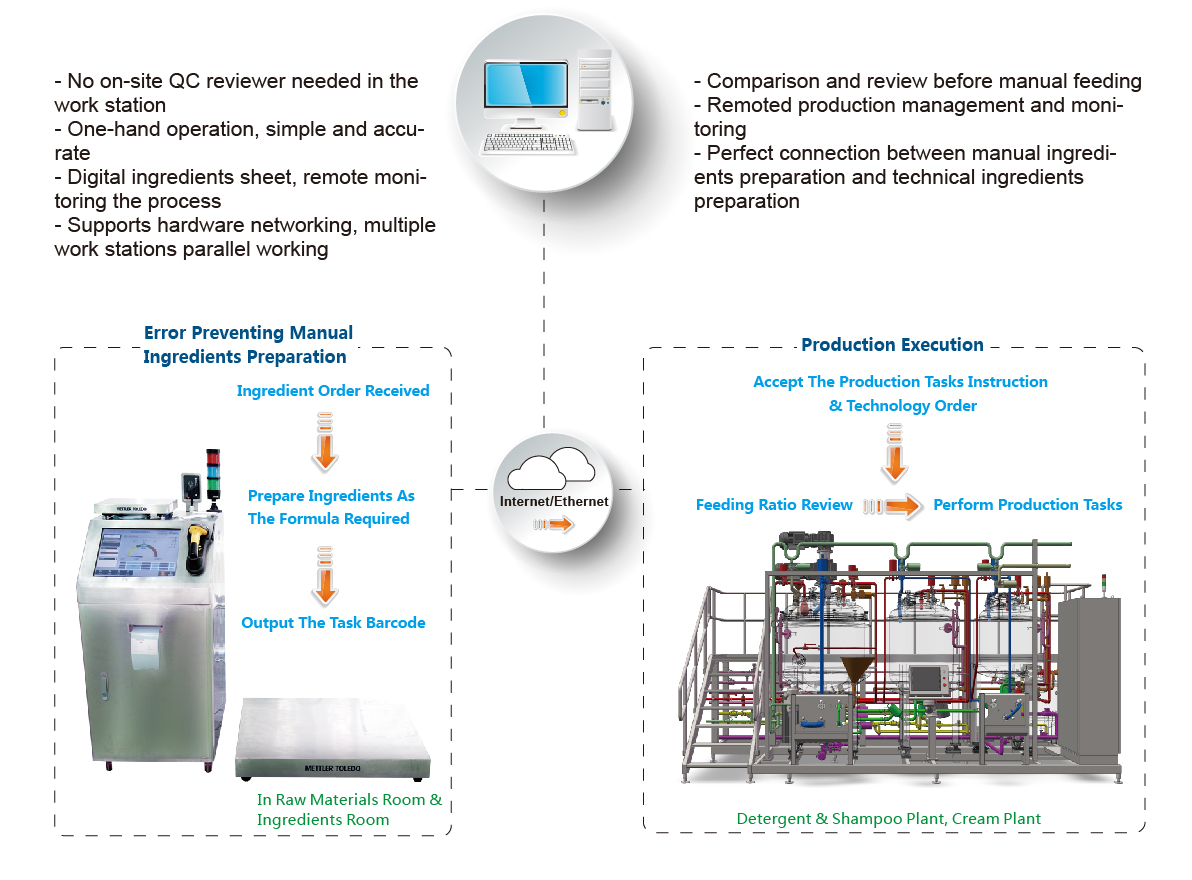

Seamlessly connection between Manual ingredients preparation data and mixing device data

The main point of interest

● Friendly interface touch screen
● Unique bar code system
● Data graphically display
● Digital batch records and digital signatures
● Convenient weighing and control
● Digital documentation of all batches of ingredients is allotted with authorized digital signature to limit access, to ensure the permissions of the authorized operators to access and modify.
● The certainty of Barcode system ensures the process safety by identifying each material’s laser barcode. For that, the quality, shelf life of the product, and the accuracy of the weight before measuring, all can be guaranteed.
● MO Overview: from selecting the formula to starting every task, the details will be displayed clearly on the screen. The measurement of the required ingredients also can be prepared easily.
● The weighing data will be displayed graphically, and the data of the difference of the weight, and the tolerance range to the target weight also will be shown clearly on the screen. If there is overweight or underweight which is beyond the tolerance range, there will be sound and light alarm to call for a management intervention.
